Some pics from my town #124157 08/14/06 07:13 PM
Joined: Jul 2002
Posts: 8,262
Trumpy Offline OP
Member
Photo's submitted by vlad_tepish:

Pic 1: Leaning pole in Wisconsin:

[Linked Image]

Pics 2 and 3: Pole lighting at grocery store:

[Linked Image]

[Linked Image]

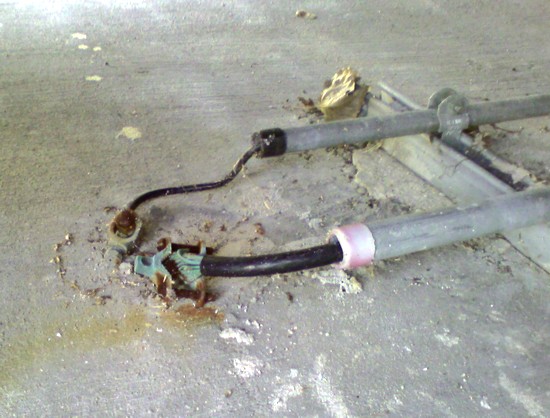

Pics 4 and 5: Whats wrong here?:

[Linked Image]

[Linked Image]


[This message has been edited by Trumpy (edited 08-14-2006).]

Tools for Electricians:
Re: Some pics from my town #124158 08/14/06 07:23 PM
Joined: Jul 2002
Posts: 8,262
Trumpy Offline OP
Member
More:

Pic 6: No ground in sub-panel:

[Linked Image]

Pics 7 and 8: Weatherproof box?,outside pizza place a block from my house:

[Linked Image]

[Linked Image]

Pic 9: Same place, bell box not attached to the wall:

[Linked Image]


Thanks Patrick!. [Linked Image]

Re: Some pics from my town #124159 08/15/06 12:49 PM
Joined: Nov 2002
Posts: 134
R
RSmike Offline
Member
By looking at your dash I see you've obtained all the items on the scavenger hunt list. [Linked Image]

What's with all the grounds? Looks like they aren't even compressed into the connector. Are there two ground rods there?

I like the color coded breakers. I did something similar in my house so the wife would know which ones are lights, outlets, etc, etc. And which ones not to mess with... Can you tell us more about the color coding.

RSlater,
RSmike

Re: Some pics from my town #124160 08/15/06 02:55 PM
Joined: Oct 2005
Posts: 100
J
JJM Offline
Member
#6 is such a shame too, because the panel is just so neat and well organized. You really wouldn't expect the ground to be missing. Wonder how that happend...

Joe

Re: Some pics from my town #124161 08/15/06 04:08 PM
Joined: Mar 2005
Posts: 1,803
Alan Belson Offline
Member
Pic 7. Why was it necessary to repoint/mastic[?] a whole foot to the right of the box, [ just below the row of header bricks ]. What's under there I wonder?


Wood work but can't!
Re: Some pics from my town #124162 08/16/06 07:41 AM
Joined: Oct 2005
Posts: 39
V
vlad_tepish Offline
Member
thr scavenger hunt was fun but I did not win,you should see the boss' van.
yes the pannel looks nice but you can tell that the guy who made up the pannel was not the same one who did the pipe work above the droped cealing"drunken monkey piping".
yes there are 2 ground rods one rod is done properly the other one has a bonding clamp on it.

the color codeing is for the employes "only turn off the green ones they are the lites".


Patrick
Re: Some pics from my town #124163 08/16/06 07:48 AM
Joined: Jan 2003
Posts: 4,391
I
iwire Offline
Moderator
Who says the panel is required to have a grounding bar.

It is likely grounded by the raceway and I don't see wiring methods such as cable that require a grounding bar.


Bob Badger
Construction & Maintenance Electrician
Massachusetts
Re: Some pics from my town #124164 08/16/06 09:06 PM
Joined: Apr 2002
Posts: 7,105
HotLine1 Offline
Member
Bob: Good shot!
OK, two rods?? not bonded together??? Pipe clamp on rod, inproperly used?? Distance between rods?? Paint encrusted pole feeder repair?, more of that around then the ones done correctly!

The excuse for the 4" round/cover...someone moved something, note the tele ell fitting. My guess, it goes to a relocated sign!

The FS box? cable feeding it, brick wall....handyman hacker.

Retail bldgs are notorious, including the neighborheed pizza joints.

John


John
Re: Some pics from my town #124165 08/19/06 01:15 PM
Joined: Jun 2004
Posts: 1,273
T
Tesla Offline
Member
I'd fail Pictures 4 & 5: They are inductive chokes as installed.

Both runs must be clamped by a bonding bushing of the direct pass-through type. This is variously called a Rigid Bonding Bushing or a Hubbed Bushing.

They are referred to in 2002 NEC 250.70 (1)

Exhibit 250.32 in the 2002 NEC Handbook shows one.

Ironically, the drawing shows it improperly made up. The fitting is designed to terminate the GEC metallic raceway.


Tesla
Re: Some pics from my town #124166 01/11/07 08:13 PM
Joined: Aug 2003
Posts: 57
lil suzi Offline
Member
That first pic definately looks like WI. Almost looks like the hwy between Evansville and Stoughton?


"Live the dream, you only get one chance."
