230 or 345 kV transmission lines? #217620
09/18/16 11:25 AM
09/18/16 11:25 AM
Vlado  Offline OP
Member
Joined: Feb 2011
Posts: 28
Croatia
Hi,
Please, take a look:
https://www.youtube.com/watch?v=NKnE61aaS9U
Are these 230 kV or 345 kV lines? Without much thinking, evaluating phase clearances and counting number of porcelain bells insulators in strings I would say it is 345 kV. However, there are two things that puzzle me. One power line has just one conductor per phase (no bundle), and 330 kV levels and above are bundle conductors on regular basis.However,I don't live in the states. Anybody from Pensylvannia?

Tools for Electricians:
Re: 230 or 345 kV transmission lines? [Re: Vlado] #217627
09/19/16 11:09 PM
09/19/16 11:09 PM
G
gfretwell  Offline

Member
Joined: Jul 2004
Posts: 9,302
Estero,Fl,usa
Wild guess is 250kv.
BTW there are some good videos in the side bar next to that one. I watched for about an hour.


Greg Fretwell
Re: 230 or 345 kV transmission lines? [Re: gfretwell] #217628
09/20/16 08:09 AM
09/20/16 08:09 AM
Vlado  Offline OP
Member
Joined: Feb 2011
Posts: 28
Croatia

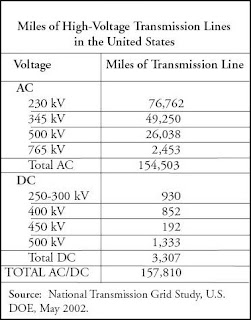

I think can't be 250 since that's not standardized in USA. Here you can see standardized EHV voltages in the states:
[Linked Image]

Hard to tell just by the insulators (changes form location to location). Difference between 230 and 345 isn't so big

Last edited by Vlado; 09/20/16 08:11 AM.
Re: 230 or 345 kV transmission lines? [Re: Vlado] #217633
09/20/16 12:18 PM
09/20/16 12:18 PM
G
gfretwell  Offline

Member
Joined: Jul 2004
Posts: 9,302
Estero,Fl,usa
Dunno, that is just what the FPL guy told me about the line behind my house. Maybe they round it off or something.

This is supposed to be 250kv and two 48 kvs

[Linked Image]

Next time I see the guys working at the sub station I will ask again


Greg Fretwell
Re: 230 or 345 kV transmission lines? [Re: gfretwell] #217634
09/20/16 01:24 PM
09/20/16 01:24 PM
Vlado  Offline OP
Member
Joined: Feb 2011
Posts: 28
Croatia
Yes, probably he rounded it. For systems with nominal voltage 230 kV ac, maximum allowed continuous operating voltage is 245 kV. 250 is close to that

Re: 230 or 345 kV transmission lines? [Re: Vlado] #217635
09/20/16 02:32 PM
09/20/16 02:32 PM
HotLine1  Offline

Member
Joined: Apr 2002
Posts: 7,039
Brick, NJ USA
Recently had two (2) 500Kv circuits installed on monopole towers into our switchyard from a plant 2 towns northeast.

I thought about taking a pic this AM, but with the current high state of alert here, I don't need Homeland Security on my case.

The monopoles replaced old lattice towers.



John
Re: 230 or 345 kV transmission lines? [Re: Vlado] #217636
09/20/16 03:31 PM
09/20/16 03:31 PM
Vlado  Offline OP
Member
Joined: Feb 2011
Posts: 28
Croatia
"Compactifaction" of power lines is a modern trend almost everywhere today. Note however that wooden poles in the yt video are very old fashioned style. Something like that you will not find in EU, especially not above 200 kV level!

Re: 230 or 345 kV transmission lines? [Re: Vlado] #217641
09/23/16 01:35 PM
09/23/16 01:35 PM
Vlado  Offline OP
Member
Joined: Feb 2011
Posts: 28
Croatia
Ok, if this isn't some monkey business but proper engineering design, this has to be 230 kV. Althought I've never seen a 220 kV pylon with as many as 18 standard disc units in a suspension string in EU (I think 16 being the most), that number can vary on several things (altitude, predicted contamination/polution level etc). OTOH, I heard there are still operating 345 kV lines with single conductor per phase somewhere in the states. And these are rare. In such cases used ACSR conductors are massive (dia> 1.7"). More importantly, corona suppression rings are put on ends of insulators with no exception.

Re: 230 or 345 kV transmission lines? [Re: Vlado] #217643
09/24/16 11:33 AM
09/24/16 11:33 AM
Vlado  Offline OP
Member
Joined: Feb 2011
Posts: 28
Croatia
345 kV with a single massive conductor per phase:
https://www.youtube.com/watch?v=d5i_kSJAjq0
Footage and design is half a century old smile

Re: 230 or 345 kV transmission lines? [Re: Vlado] #217682
10/12/16 03:23 PM
10/12/16 03:23 PM
A
annemarie1  Offline
Member
Joined: Mar 2015
Posts: 75
england
Would they really put something as high as 220Kv on wooden poles surely to get safety clearance you need a metal pylon
