K & T Splicing and Soldering #153180
05/21/06 06:05 PM
05/21/06 06:05 PM
electure  Offline
OP
Member
Joined: Dec 2000
Posts: 4,276
Fullerton, CA USA

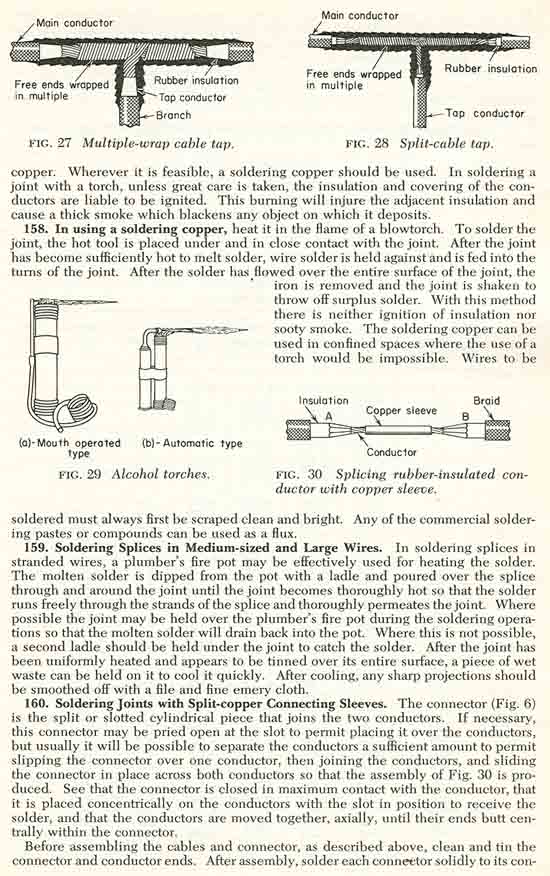

Here are some pages from the 9th Edition of the American Electrician's Handbook.

They show and explain how conductors were prepared, spliced and soldered in days past.


[Linked Image]

[Linked Image]

[Linked Image]

[Linked Image]

[Linked Image]

[Linked Image]

[This message has been edited by electure (edited 05-21-2006).]

Tools for Electricians:
Re: K & T Splicing and Soldering #153181
05/21/06 08:47 PM
05/21/06 08:47 PM
G
gfretwell  Offline

Member
Joined: Jul 2004
Posts: 9,323
Estero,Fl,usa
I use the #153 a lot when I am splicing small stranded wires (soldered). It allows you to slide a small diameter shrink tube over it for a very smooth splice in the run of a wire. When I am using fixture wires I will wrap it with one strand of a stranded 14/12 THHN.


Greg Fretwell
Re: K & T Splicing and Soldering #153182
06/04/06 01:24 PM
06/04/06 01:24 PM
E
e57  Offline
Member
Joined: May 2003
Posts: 2,876
S.F.,CA USA


Mark Heller
"Well - I oughta....." -Jackie Gleason
Re: K & T Splicing and Soldering #153183
06/05/06 06:55 AM
06/05/06 06:55 AM
T
Texas_Ranger  Offline
Member
Joined: Dec 2001
Posts: 2,436
Vienna, Austria
Re: fig. 13: that beast is twisted left handed???

Re: K & T Splicing and Soldering #153184
06/23/06 08:02 AM
06/23/06 08:02 AM
togol  Offline
Member
Joined: Sep 2005
Posts: 421
NW In. USA
electure,
I really need to snoop around in here more often....you made me dig out my Handbook.. !!

I gave my Ninth to someone years back and have the Tenth, which does NOT contain these pages...to bad for me. thanks for posting them however


Tom
