Roof Supports Not Secured #111169
09/11/06 08:38 PM
09/11/06 08:38 PM
Admin  Offline
OP
Administrator
Member
Joined: Oct 2000
Posts: 3,481
NY, USA
Quote

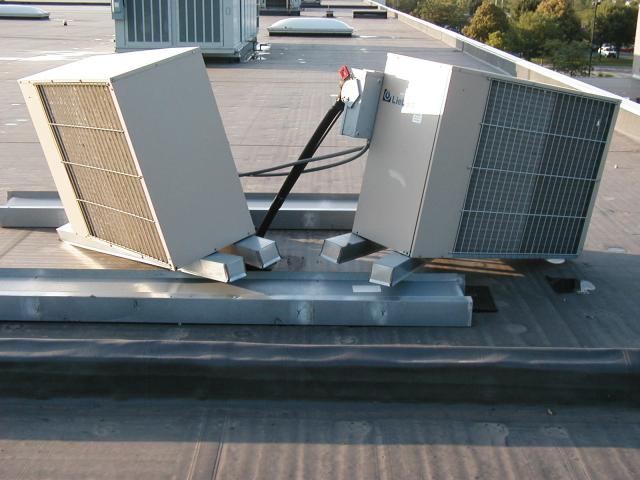

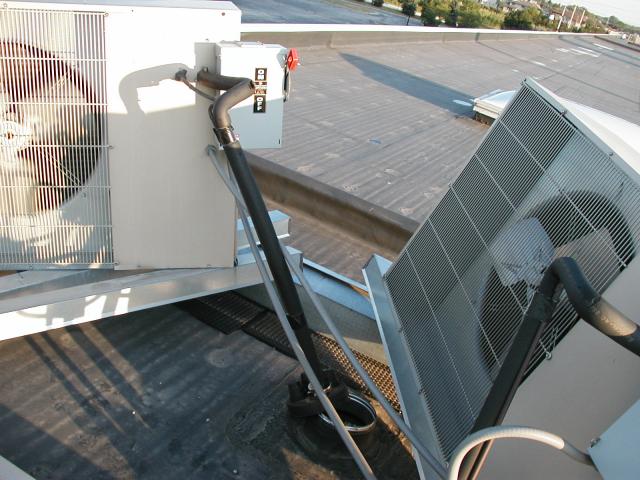

These photos are from a data center installation. Apparently the supports were not secured to the roof. The units contain a condenser and fan only so they are not very heavy. A recent storm knocked the units off their supports. The units stayed running though. No one noticed a problem until someone went on the roof to check something else.

SteveE
[Linked Image]

[Linked Image]

[Linked Image]

2017 / 2014 NEC & Related Books and Study Guides
Re: Roof Supports Not Secured #111170
09/11/06 09:40 PM
09/11/06 09:40 PM
S
ShockMe77  Offline
Member
Joined: Jun 2005
Posts: 821
Rahway, New Jersey
Terrible workmanship.

Re: Roof Supports Not Secured #111171
09/12/06 02:33 PM
09/12/06 02:33 PM
Trumpy  Offline

Member
Joined: Jul 2002
Posts: 8,231
SI,New Zealand
77,
Quote
Terrible workmanship.

I couldn't agree more, mate.
In fact I can't see how you can apply the word workmanship to this disaster. [Linked Image]
Looks like the gas lines are Hard-Drawn copper tubing, these tend to have a bit more strength and "give" than soft-drawn.
Which is a good thing, because once you let the refrigerant out with a broken pipe, it costs a fair bit to get the units recharged (this would be at the contractors charge).
Were there any fixings in them brackets at all?.
I've worked on A/C units of this size before and the outdoor units have always been far from light.
One final question, imagine them units in their original position, would there be adequate working space with them disconnects in between the units like that?.
This job is just plain rough, I'd hate to see the standard of the piping below.


[This message has been edited by Trumpy (edited 09-12-2006).]

Re: Roof Supports Not Secured #111172
09/13/06 06:58 PM
09/13/06 06:58 PM
J
JoeTestingEngr  Offline
Member
Joined: Nov 2005
Posts: 791
Chicago, Il.
Were they originally placed so they would exchange hot air between each other???
Joe
