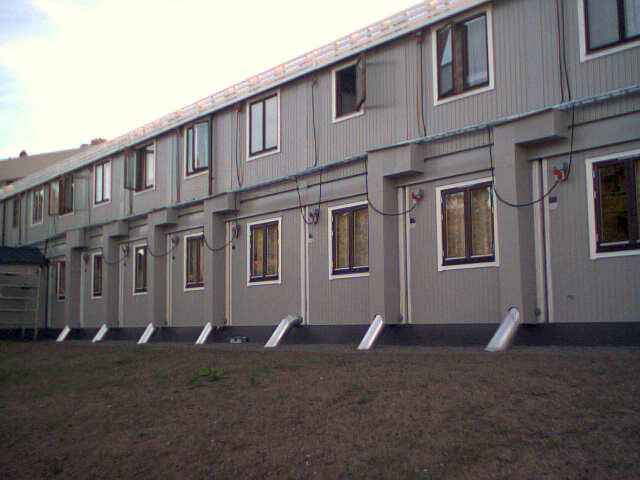

I took a few pictures of prefabricated homes here in Stockholm yesterday. As you can imagine, these flats aren't the most exclusive in the market [Linked Image]

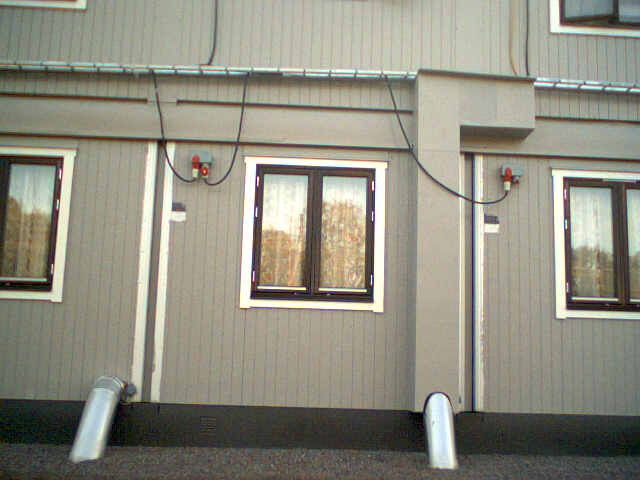

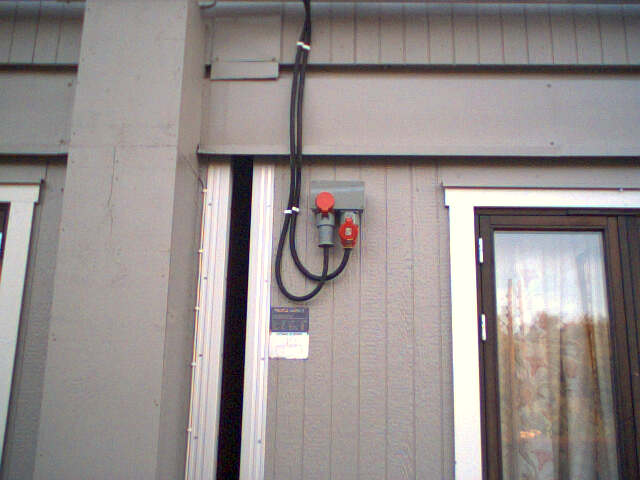

Look at the how they supply power to the flats. I imagine a few of you will be surprised...

1

2

3


[This message has been edited by C-H (edited 09-10-2004).]

#141546 09/10/04 01:07 PM
Joined: May 2004
Posts: 186
A
Member
C-H, Was the electrical supply an after-thought? Tell me that this is not the norm in Stockholm, is it?
Alan

#141547 09/10/04 05:43 PM
Joined: Aug 2001
Posts: 7,520
P
Member
Ugh! Flexible cords strung along as though power was indeed an afterthought. They look like IEC 309 connectors, and being red I'm assuming each "module" has 3-phase power.

Why two cords to some? Surely they haven't just used the box on some sections as a feed through for others?

What are the silver ducts running down in the ground at an angle?

#141548 09/11/04 01:24 PM
Joined: Aug 2001
Posts: 7,520
P
Member
*** Public apology to Bjarney ***

Scott posted at this point but in editing an image link I somehow managed to erase his message entirely. [Linked Image] (Long tiring day is the only excuse I can come up with -- Well it sounds better than stupidity, doesn't it? [Linked Image])

Anyway, my apologies, and Scott, perhaps you could re-post.

#141549 09/11/04 01:33 PM
Joined: Apr 2002
Posts: 2,527
B
Moderator

It's not easy to compare labor and material costs on a different continent, but in North America the cost of an IEC-309 outdoor 5-pin 30- or 60-amp receptacle and plug {much less a pair of them} would probably be more expensive than a meter socket and empty panelboard.

Here, IEC-309 devices they are usually reserved for industrial duty. [Although they show up near the ceilings at McDonald's burger kitchens.]

The cable tray looks cool, but I’ll bet inspectors here would frown on it, and the cable—if it’s 5-conductor flexible cord—may get a low score. If it’s less-expensive/less-flexible tray cable, they’d probably be crying that it is not intended to be terminated in a plug. {Electure—didn’t you have a special term for tray cable… “Industrial Romex”?}

I’d love to put some of those connectors around my house, but 400V 3ø might be a little hard to come by on this side of things.

[Linked Image]

—another Scott (of many) at E-C.net




[This message has been edited by Bjarney (edited 09-11-2004).]

#141550 09/11/04 03:20 PM
Joined: Oct 2003
Posts: 289
:
Member
Thats an usual setup, that is mounted on nearly all of these "boxes". They are often used for stocking things on building sites ect, or even to live in.

They all do have a CEE 3Phase 16A or 32A plug and a receptacle next to it for easy connecting in a row by just using extension cables.

inside there's a breaker panel with Master 3-phase GFCI in every container.

As they are all single modular to be removed or added, that setup makes sense. don*t see a problem here as long as you dont connect 10+ of these in a row......

[This message has been edited by :andy: (edited 09-11-2004).]

[This message has been edited by :andy: (edited 09-11-2004).]

#141551 09/11/04 06:29 PM
Joined: Jul 2002
Posts: 8,407
Member
C-H,
Those are some interesting pics you have there.
Correct me if I'm wrong, but is the Red IEC 309, a 63A connector?.
Them silver pipes look like they cover the water and sewerage pipes as they enter the building.

#141552 09/12/04 07:50 AM
Joined: Sep 2002
Posts: 1,498
C
C-H Offline OP
Member
I didn't look very close at the connectors, but I think they are 32A. (I wanted to avoid a "No miss, I wasn't looking through your window. I was just looking at this electrical thingey here..."- scenario.)

Andy's description is accurate. The connectors are indeed daisy chained. And, yes Scott, this is ordinary rubber cord. The IEC 309 (CEE) connectors are in fact cheaper than ordinary socket outlets.

Mike is right about the silver pipes: It is the water and sewage.

Normally, this type of module is used on construction sites: A truck comes and drops off the modules which are quickly hooked up to power and water. When the project is finished a few monts later, the truck comes and pick up the modules. In this case, however, the modules have been used for semipermanent housing. (Student dormitories)

[This message has been edited by C-H (edited 09-12-2004).]

#141553 09/13/04 11:23 AM
Joined: Aug 2001
Posts: 7,520
P
Member
Quote
(I wanted to avoid a "No miss, I wasn't looking through your window. I was just looking at this electrical thingey here..."- scenario.)
I'm sure we'd all come and act as character witnesses for you...... [Linked Image]

The IEC309 connectors are used widely in commercial applications here as well. Go into the cafe section of the local supermarket, for example, and you'll see all the ovens, griddles, etc. connected with them.

The 2P+E 16A blue versions are also almost universal here for boat and RV power hookups.

On the cost side, these plugs are pretty cheap in Britain. From my latest catalog:

240V 16A 2P+E (blue) plug £1.09 (just under $2)
240/415V 32A 4P+E (red): £3.49 (~$6.30)


Scott,
Any idea when IEC309 came into use in America? I get the impression they're a relatively modern introduction there.


[This message has been edited by pauluk (edited 09-13-2004).]

#141554 09/14/04 01:49 AM
Joined: Sep 2002
Posts: 1,498
C
C-H Offline OP
Member
Quote
I'm sure we'd all come and act as character witnesses for you......

Thanks... I think [Linked Image]

Funnily, McDonalds use these connectors (close to the ceiling like Scott wrote) but most other places seem to prefer Perilex. Why have one standard when you can have two to choose from? [Linked Image]

The blue 230V connectors haven't really caught on here and cost as much as the 400V versions. About $5 for the plugs, a bit more for the wall mounted inlets and outlets.
