Contactor Violations #109908
01/01/06 03:48 PM
01/01/06 03:48 PM
Admin  Offline
OP
Administrator
Member
Joined: Oct 2000
Posts: 3,503
NY, USA
Quote

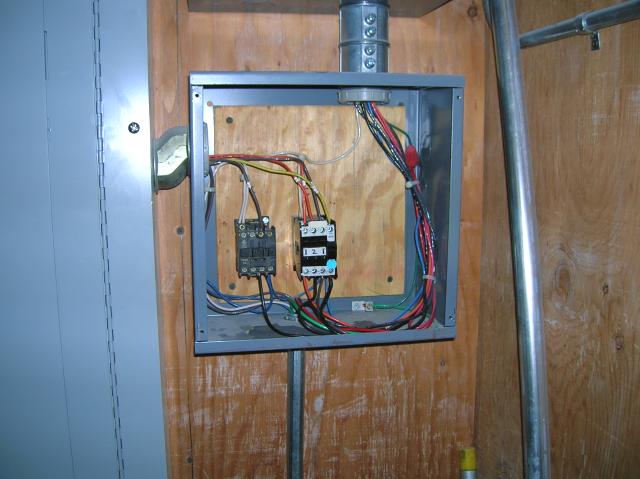

Pic #1 - Lighting contactors mounted on a wood backer.

Pic #2 - A 2P contactor installed in an old time clock box that operates a hot water heater via 24V coil via EMS. They tell me they have no hot water, wonder why?

Bill (LearJet9)
[Linked Image]

[Linked Image]

2017 / 2014 NEC & Related Books and Study Guides
Re: Contactor Violations #109909
01/02/06 10:25 PM
01/02/06 10:25 PM
Radar  Offline
Member
Joined: Apr 2004
Posts: 349
Los Angeles, CA
What's up with the red wire attaching to the top left of the 2P contactor in pic 2? It looks badly scorched. Time clock can looks sorta sooty too.

Radar


There are 10 types of people. Those who know binary, and those who don't.
Re: Contactor Violations #109910
01/03/06 08:21 AM
01/03/06 08:21 AM
L
LearJet9  Offline
Member
Joined: Apr 2005
Posts: 197
Millis, MA USA
The original call was for "no hot water." The red wire is actually severed. It actually took us 30+ minutes to locate this closet and the contactor. It is +-100ft from the hot water heater.
